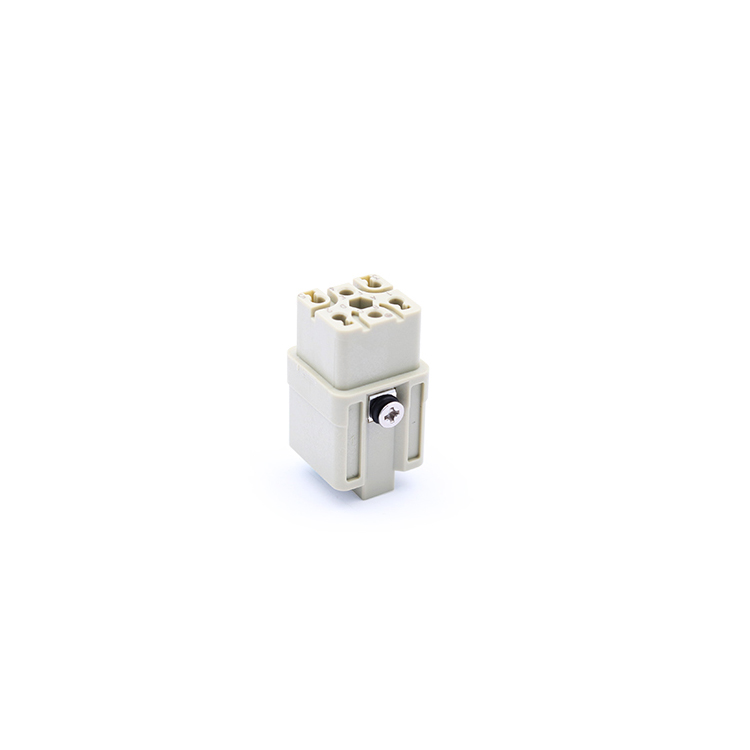

SO-HQ-005/0-FQ

  • Insulation Piercing Connector
SO-HQ-005/0-FQ

Part：
Product Certification：

Download

Technical Data
  • Series

    HQ insert series

  • Connection type

    Spring connection (quick connection)

  • Male/female

    Male

  • Specifications

    3A

  • Number of connector contacts

    5

  • Grounding contacts

    Yes

  • Rated current

    16A

  • Rated voltage

    230V

    400V

  • Rated pulse voltage

    4KV

  • Class of pollution

    3

  • Insulation resistance

    ≥10¹ºΩ

  • Working temperature

    -40℃...+125℃

  • Mating cycles

    ≥500

  • Inserts material

    Polycarbonate

  • Inserts color

    RAL 7032 (light gray)

  • Flame retardant rating as per UL94

    V0

  • Contact material

    Copper alloy

  • Surface treatment

    Silver-plated

  • Contact resistance

    ≤3mΩ

  • Wire gauge (mm²)

    0.5-4mm²

    0.14-2.5mm²

  • Wire gauge (AWG)

    20-12 AWG

    26-14 AWG

  • Stripping length

    10±0.5mm
