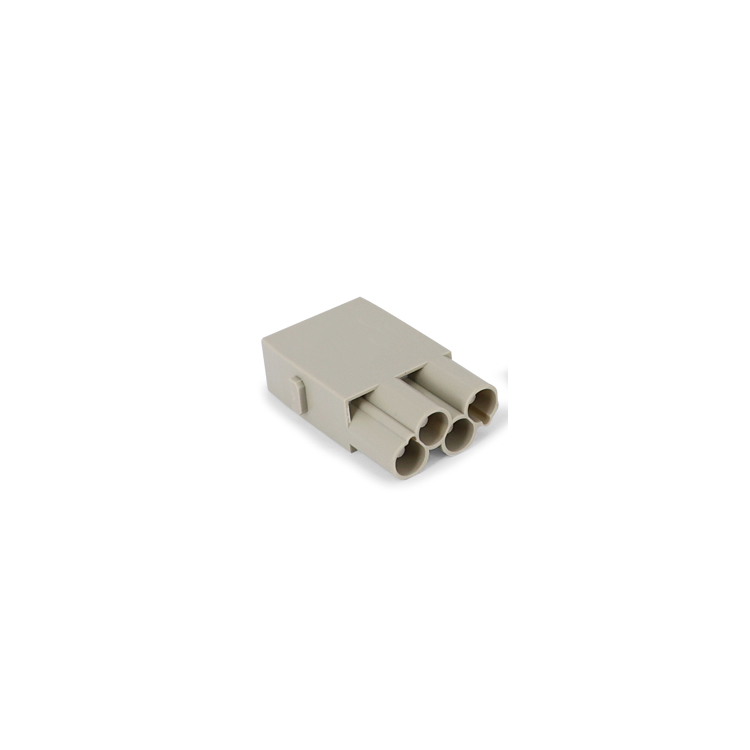

SO-HMK-004-MQ

  • Insulation Piercing Connector
SO-HMK-004-MQ

Part：
Product Certification：

Download

Technical Data
  • material insert

    Polycarbonate

  • standard

    DIN EN 60 664

    DIN EN 61 984

  • wire gauge awg

    16-10 AWG

  • wire gauge mm2

    1.5-6mm2

  • contact resistance

    ≤3mΩ

  • surface treatment

    Silver-plated

  • material contacts

    Copper alloy

  • flame retardant rating as per ul94

    V0

  • color insert

    RAL 7032 (light gray)

  • series

    HM modular insert series

  • mating cycles

    ≥500

  • limiting temperature

    -40℃...+125℃

  • insulation resistance

    ≥10¹ºΩ

  • pollution degree

    3

  • rated impulse voltage

    8kV

  • rated voltage

    830V

  • rated current

    40A

  • number of contacts

    4

  • male female

    Male

  • connection type

    Spring connection (quick connection)

  • size of the module

    Single module
