Part：16-95mm2/10-25mm2
Product Certification：
Download
These standards include tests to verify reliable operation even in the harshest environments:
Designed for installation from –20 °C up to +50 °C
No limitation of mechanical loads for main and branch conductors
Shear head forces are adapted to the required contact forces for each application (main, service, lightning)
Voltage withstand to 6 kV in a 30 cm water bath
No change in contact resistance and temperature after overloads and load cycling
Voltage withstand to 6 kV in metallic balls after heavy weathering exposure (UV-light, humidity and temperature cycling)
Corrosion resistance of the metal parts has been proven in the salt fog chamber and wet SO2 gas chamber
Key Features:
Range-taking
Suitable for XLPE, PE or PVC conductors
Waterproof
Captive and flexible end caps
All components are solid and fixed in place
Equipped with shear head to ensure a reliable tightening torque
Operating temperature -55°C to +55°C
Installation temperature -20°C to +55°C
Can be installed on energized main if not under load
\Model
Main line section
Branch section
No.Bolt

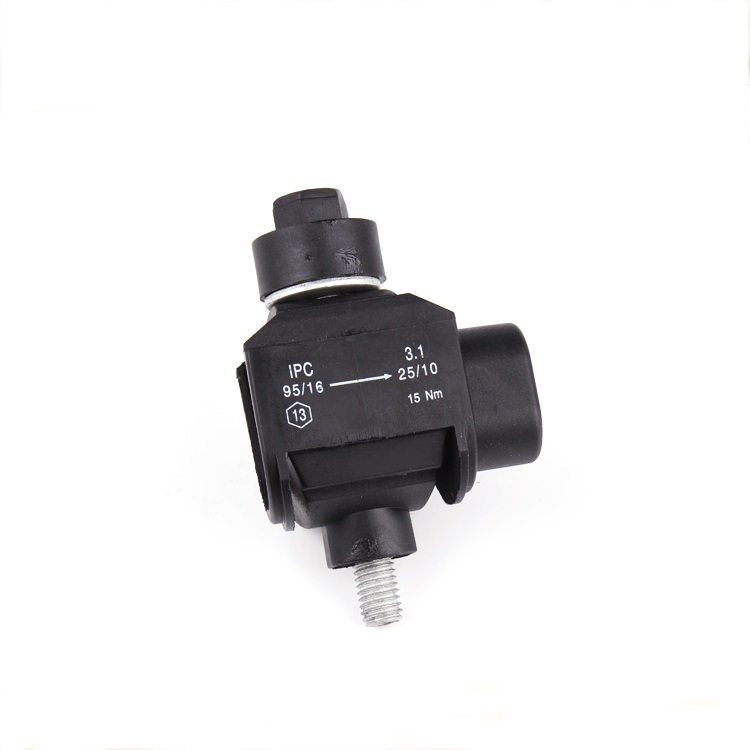

IPC 3.1
16-95
10-25
1
IPC 3.2
70-95
70-95
1
IPC 3.3
120-185
16-25
1
IPC 3.4
70-185
70-185
2
