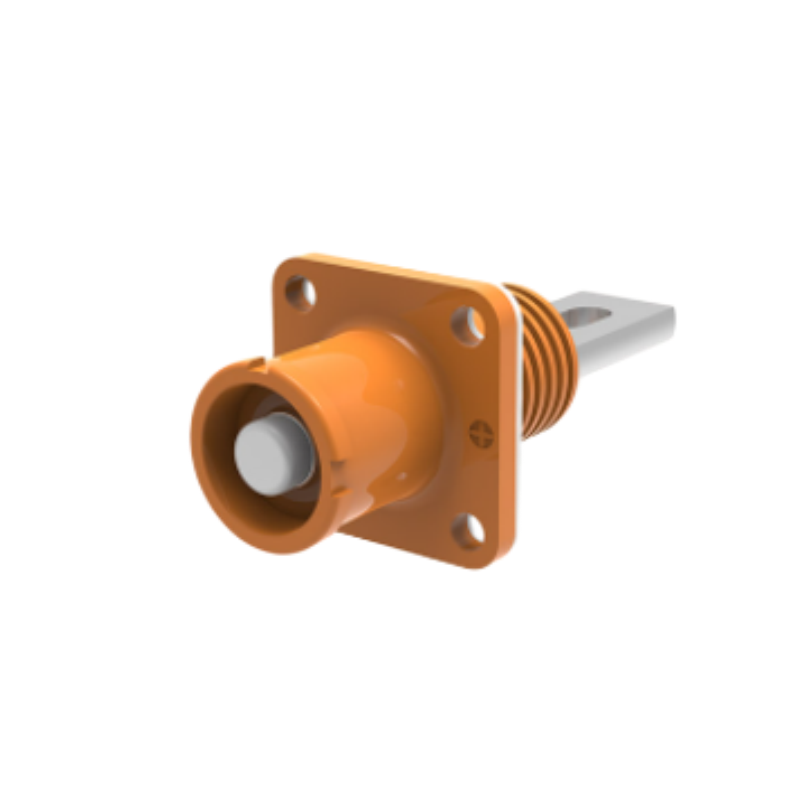

ESS-100A-16-B-OR-00

  • Insulation Piercing Connector
ESS-100A-16-B-OR-00

Part:
Product Certification:

Download

Wiring data

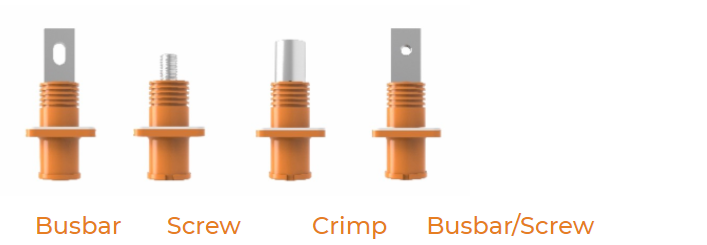

                                     Wiring mode                                                                          Busbar
Protection grade (pair plug)IP67
Ambient temperature (operation)-40°C ~ +125°C
Ambient temperature (storage/transportation)-40°C ~ +80°C
Altitude2000m
Mechanical properties
Plugging times100
Insertion force<60N
Pullout force>10N
Material data
Insulating materialNylon
Halogen-freeCompliance with standards
Environmental protection mattersREACH/RoHS compliant
Sealing ring materialSilicone
Contact materialCopper alloy
Shell colorOrange
Flammability ratingUL94V-0
Electrical parameters
Pollution level3
Rated current100A / UL DC1500V
Insulation resistance>5000MΩ
Contact resistance≤0.5mΩ
