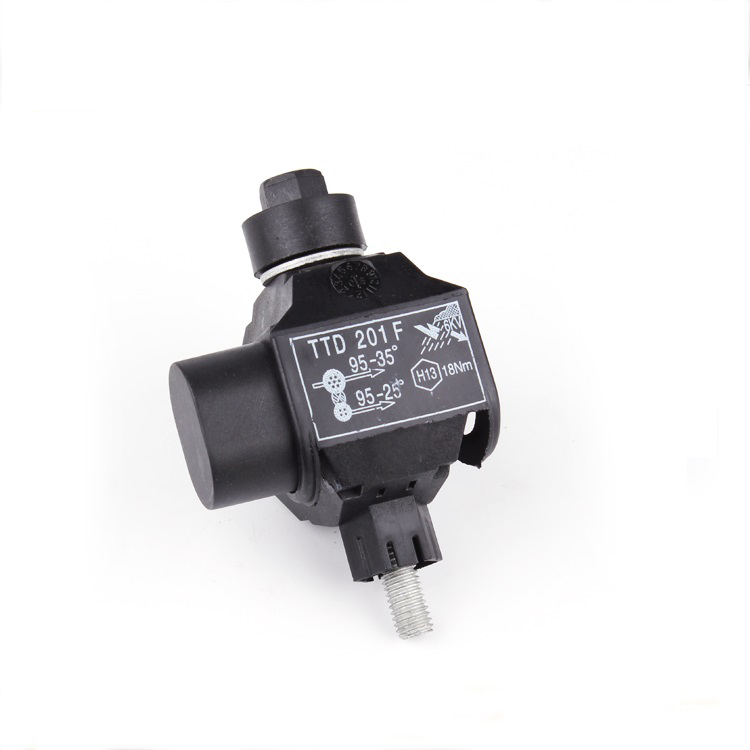

TTD201F

These standards include tests to verify reliable operation even in the harshest environments:

Designed for installation from –20 °C up to +50 °C

• No limitation of mechanical loads for main and branch conductors

• Shear head forces are adapted to the required contact forces for each application (main, service, lightning)

• Voltage withstand to 6 kV in a 30 cm water bath

• No change in contact resistance and temperature after overloads and load cycling

• Voltage withstand to 6 kV in metallic balls after heavy weathering exposure (UV-light, humidity and temperature cycling)

• Corrosion resistance of the metal parts has been proven in the salt fog chamber and wet SO2 gas chamber

Key Features:

• Range-taking

• Suitable for XLPE, PE or PVC conductors

• Waterproof

• Captive and flexible end caps

• All components are solid and fixed in place

• Equipped with shear head to ensure a reliable tightening torque

• Operating temperature -55°C to +55°C

• Installation temperature -20°C to +55°C

• Can be installed on energized main if not under load

• Model	Main line section	Branch section	No.Bolt
  TTD121F	25-95	2.5-25	1
  TTD151F	25-95	(2.5)6-35	1
  TTD201F	35-95	25-95	1
  TTD281F	50-185	6-35	1
  TT2D82F	25-95	25-35	1
  TTD451F	95-240	95-240	2
