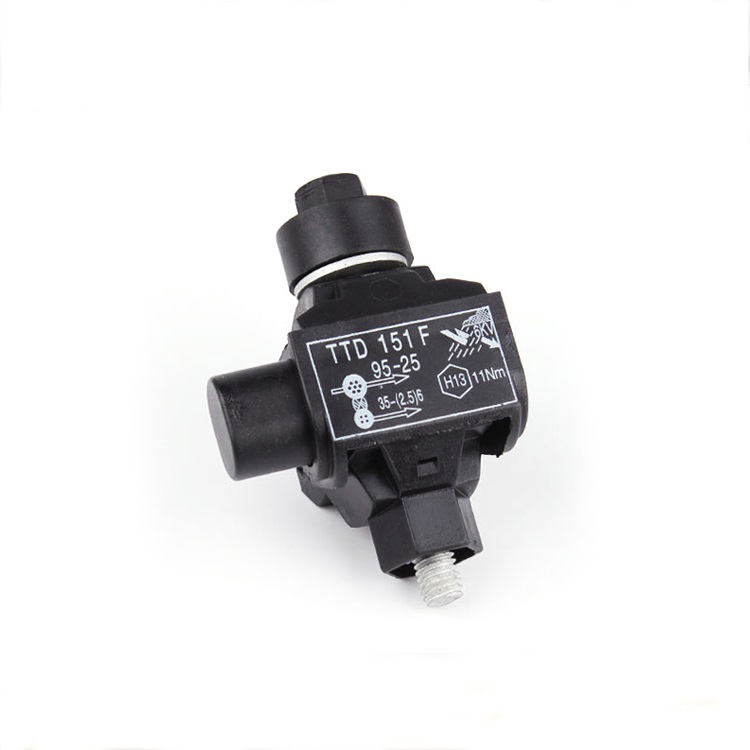

TTD151F

  • Insulation Piercing Connector
TTD151F

Part:25-95mm2/(2.5)6-35mm2
Product Certification:

Download

These standards include tests to verify reliable operation even in the harshest environments:

Designed for installation from –20 °C up to +50 °C

  • No limitation of mechanical loads for main and branch conductors

  • Shear head forces are adapted to the required contact forces for each application (main, service, lightning)

  • Voltage withstand to 6 kV in a 30 cm water bath

  • No change in contact resistance and temperature after overloads and load cycling

  • Voltage withstand to 6 kV in metallic balls after heavy weathering exposure (UV-light, humidity and temperature cycling)

  • Corrosion resistance of the metal parts has been proven in the salt fog chamber and wet SO2 gas chamber


Key Features:

  • Range-taking

  • Suitable for XLPE, PE or PVC conductors

  • Waterproof

  • Captive and flexible end caps

  • All components are solid and fixed in place

  • Equipped with shear head to ensure a reliable tightening torque

  • Operating temperature -55°C to +55°C

  • Installation temperature -20°C to +55°C

  • Can be installed on energized main if not under load

  • Model

    Main line section

    Branch section

    No.Bolt

    TTD121F

    25-95

    2.5-25

    1

    TTD151F

    25-95

    (2.5)6-35

    1

    TTD201F

    35-95

    25-95

    1

    TTD281F

    50-185

    6-35

    1

    TT2D82F25-9525-351
    TTD451F95-24095-2402
