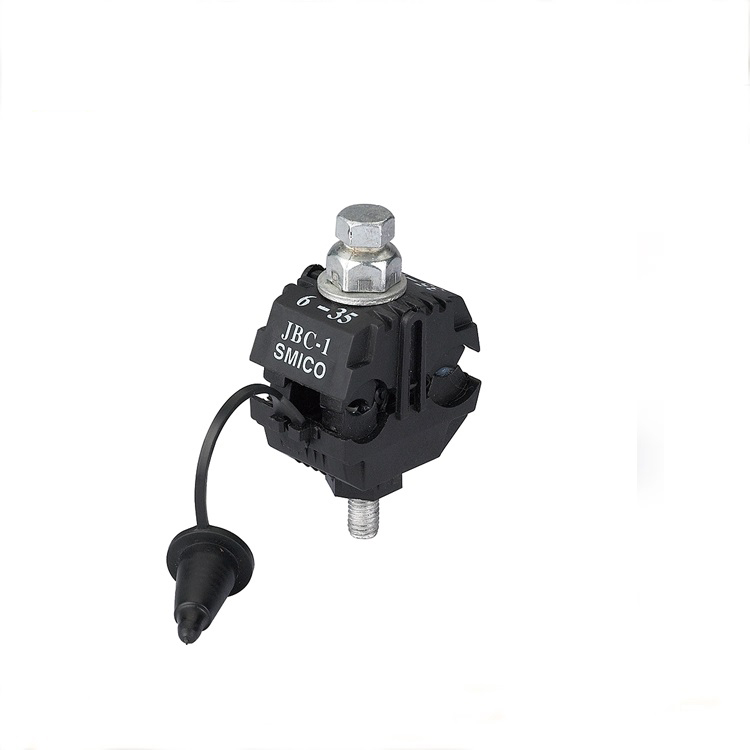

JBC-1

  • Insulation Piercing Connector
JBC-1

Part:35-70mm2/6-35mm2
Product Certification:

Download

These standards include tests to verify reliable operation even in the harshest environments:

Designed for installation from –20 °C up to +50 °C

  • No limitation of mechanical loads for main and branch conductors

  • Shear head forces are adapted to the required contact forces for each application (main, service, lightning)

  • Voltage withstand to 6 kV in a 30 cm water bath

  • No change in contact resistance and temperature after overloads and load cycling

  • Voltage withstand to 6 kV in metallic balls after heavy weathering exposure (UV-light, humidity and temperature cycling)

  • Corrosion resistance of the metal parts has been proven in the salt fog chamber and wet SO2 gas chamber


Key Features:

  • Range-taking

  • Suitable for XLPE, PE or PVC conductors

  • Waterproof

  • Captive and flexible end caps

  • All components are solid and fixed in place

  • Equipped with shear head to ensure a reliable tightening torque

  • Operating temperature -55°C to +55°C

  • Installation temperature -20°C to +55°C

  • Can be installed on energized main if not under load

  • ModleMainTapNo.Bolt
    JBC-135-706-351
    JBC-235-15035-1501
    JBC50-24050-24050-2402
