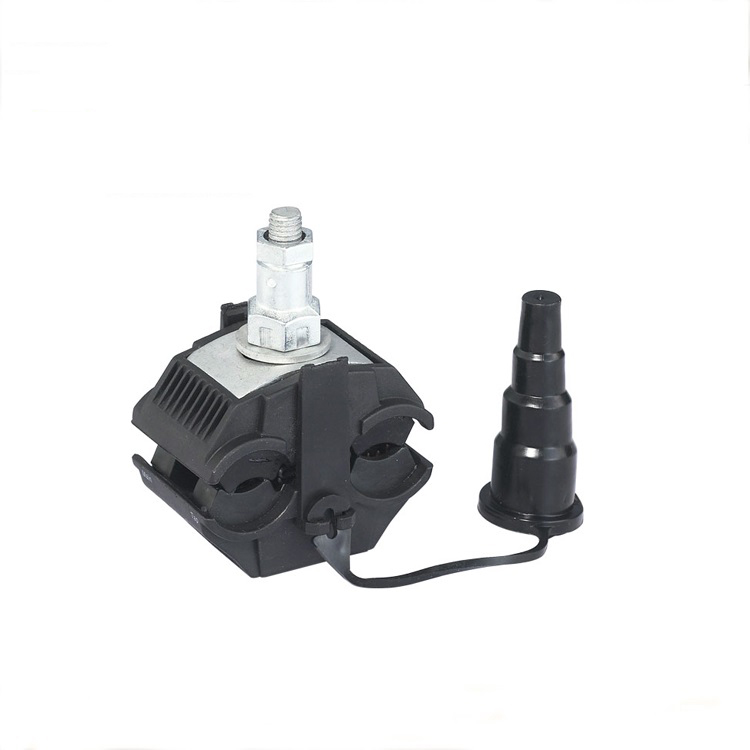

SM3-95

  • Insulation Piercing Connector
SM3-95

Part:25-95mm2/25-95mm2
Product Certification:

Download

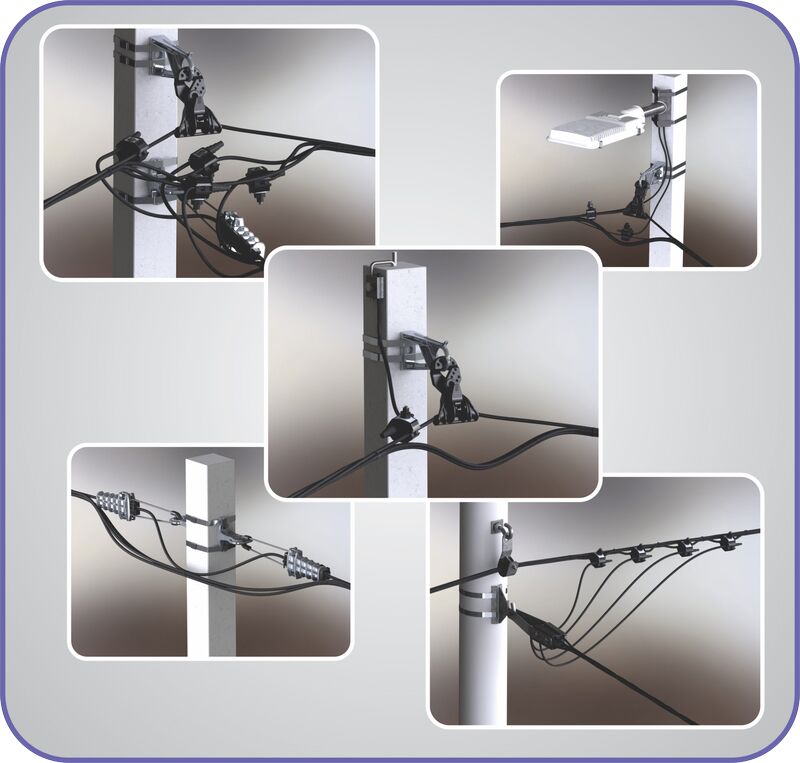

SMICO SM101 Insulation Piercing Connectors are made for service connections. The blades of the Service Insulation Piercing Connector are made of tin-plated copper or aluminium alloy allowing connections to aluminium and/or copper stranded conductors. These bodies are made of plastic with fiberglass allowing high resistance to its environment but also offering superior mechanical properties. A single torque control nut draws the two parts of the connector together and shears off when the teeth have pierced the insulation and made contact with the conductor strands.Ease of installation has been combined with excellent mechanical, electrical and environmental characteristics to provide a connector capable of terminating aluminium or copper stranded conductors. All of our insulation piercing connectors are designed and tested to fit the majority types of cables made in accordance with the European Standard HD 626, regardless of whether cables are insulated with XLPE, PE or PVC. The products are tested according to national specifications such as NFC 33 020, ANSI C119.5 and the European standard EN 50483-4.

These standards include tests to verify reliable operation even in the harshest environments:

Designed for installation from –20 °C up to +50 °C

  • No limitation of mechanical loads for main and branch conductors

  • Shear head forces are adapted to the required contact forces for each application (main, service, lightning)

  • Voltage withstand to 6 kV in a 30 cm water bath

  • No change in contact resistance and temperature after overloads and load cycling

  • Voltage withstand to 6 kV in metallic balls after heavy weathering exposure (UV-light, humidity and temperature cycling)

  • Corrosion resistance of the metal parts has been proven in the salt fog chamber and wet SO2 gas chamber


Key Features:

  • Range-taking

  • Suitable for XLPE, PE or PVC conductors

  • Waterproof

  • Captive and flexible end caps

  • All components are solid and fixed in place

  • Equipped with shear head to ensure a reliable tightening torque

  • Operating temperature -55°C to +55°C

  • Installation temperature -20°C to +55°C

  • Can be installed on energized main if not under load


  • Model

    Main line section

    Branch section

    Nominal current

    Outline size

    Weight

    Piercing depth

    SM101

    1.5-10

    1.5-2.5

    55

    27x41x62

    55

    1.5-2

    SMEP

    10-95

    1.5-16

    55

    27x41x62

    55

    1.5-2

    SM102

    4-35

    4-35

    150

    45x43x70

    130

    1.5-2

    SM2-95

    16-95

    4-35(50)

    157

    46x52x87

    160

    1.5-2

    SM2-150

    50-150

    4-35(50)

    157

    46x52x87

    162

    1.5-2.5

    SM3-95

    25-95

    25-95

    214

    50x61x100

    198

    1.5-2

    SM4-150

    50-150

    50-150

    316

    50x61x100

    219

    1.5-2.5
