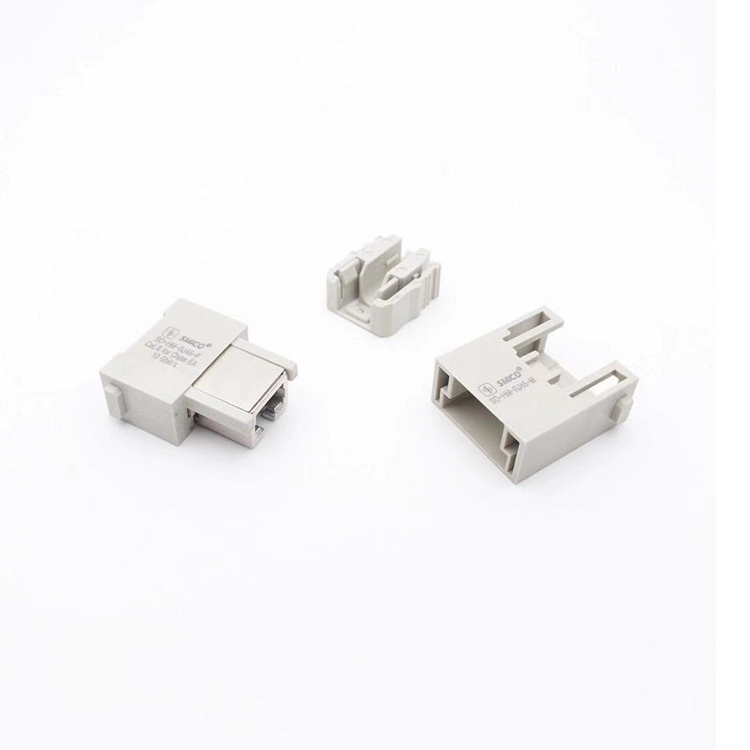

SO-HM-RJ45-APT/2

  • Insulation Piercing Connector
SO-HM-RJ45-APT/2

Part:
Product Certification:

Download

Product parameters

Inserts
Number of contacts8
Electrical dataacc. to EN 61 984
---Rated current1A
---Rated voltage50V
---Rated impulse voltage0.8kV
-Pollution degree3
Rated voltage acc. to UL<30V
Transmission featuresCategory 6 /Class E up to 500 MHz; acc. to ISO/IEC 11 801:2002 and EN 50 173-1
Transmission rate10/100/1000 Mbit/s
Insulation resistance≥1010Ω
Materialpolycarbonate
Limiting temperatures-40℃...+85℃
Flammability acc. to UL 94V0
Mechanical working life -mating cycles≥500
